Williams

Gelato & Ice Cream

Display Cabinets

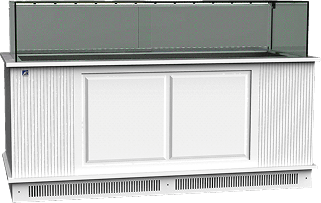

Snowgel

  • Lift-up front curved glass with hydraulic system
  • Rear polycarbonate sliding doors with Italian make sliding system
  • Inclined display of Gelato/lce cream
  • Side double vacuum glass with ceramic printing
  • Hot gas defrosting system
  • Pull-out refrigeration system
  • Electronic control panel with digital thermometer and thermostat
  • Italian make LED lightings
  • Designed for SS Gelato pans
  • Power Supply- 230V/1-Phase/50 Hz
  • Aluminium condensing water evaporating tray
  • Side & front decorative color panels
  • Twin compressor condensing unit for 20flv Ice Cream cabinet
  • Ventilated defogging system

Technical Specifications

Model Lx:DxH(in mm) Refrigeration Capacity (in Ltrs) Product Tempº C Defrosting Climate Class
Nº/Cº/%RH
No.of Shelves No. of GN Pans GN Pans Size (in mm) Electrical Input
(Std) Watts
 1-12 1293x1129x1365  Ventilated 631/60  -21/-18 GC 4/30/55 12 362x165x120 1575
 1-16 1550x1129x1365 Ventilated 812/80 -21/-18 GC 4/30/55 16 362x165x120 1856
1-20 1861x1129x1365 Ventilated 993/100 -21/-18  GC 4/30/55 20 362x165x120  2968
CS-4R 1239x1129x1365 Static -10/-15  – 4/30/55 175x109x100- 14 Nos,
175x164x100- 2 Nos
 1186



ID-Ice Cream Display, CS-Cold Stone, R-Refrigerated, GC-Hot Gas, GN-Gastronorm
