Williams

Gelato & Ice Cream

Display Cabinets

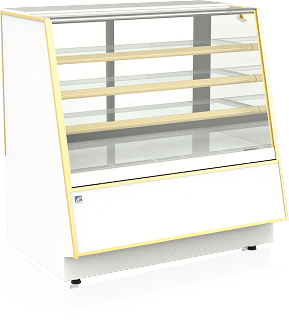

Sapphire

  • Tilt forward front glass with hydraulic system
  • Rear polycarbonate sliding doors with Italian make sliding system
  • Inclined display of Gelato/lce cream
  • AISI 304 mirror stainless steel
  • Hot gas defrosting system
  • Pull-out refrigeration system
  • Electronic control panel with digital thermometer and thermostat
  • Italian make LED lightings
  • German make polycarbonate GN pans
  • Power Supply-230V/I-Phase/5O Hz
  • Aluminium condensing water evaporating tray
  • Extra clear tempered glass
  • Twin compressor condensing unit for 16flv Ice Cream cabinet
  • Front triple glazed vacuum glass for moist protection

Technical Specifications

Model Lx:DxH(in mm) Refrigeration Capacity (in Ltrs) Product Tempº C Defrosting Climate Class
Nº/Cº/%RH
No.of Shelves No. of GN Pans GN Pans Size (in mm) Electrical Input
(Std) Watts
 ID-4R 1200x1170x1210  Ventilated 730/60  -21/-18 GC 4/30/55 12 362x165x120 1996
 ID-5R 1500x1170x1210 Ventilated 920/80 -21/-18 GC 4/30/55 16 362x165x120 2968
CS-4R 1200x975x1210  Static  -10/-15  – 4/30/55 16 175x109x100- 14 Nos,
175x164x100- 2 Nos
 1186



ID-Ice Cream Display, CS-Cold Stone, R-Refrigerated, GC-Hot Gas, GN-Gastronorm
